MULTISPAN
Ordering codePS12-1A
SMPS Power Supplies
PS12-1A

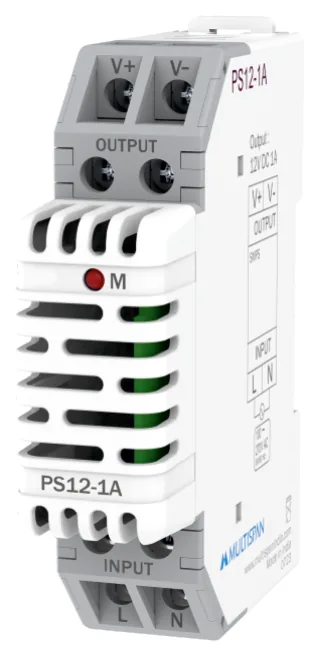

Multispan PS12-1A SMPS Power Supply (12W)
The Multispan PS12-1A is a 12W DIN-rail switch-mode power supply delivering 12V DC at 1 A with efficiency >85% @230 V AC and full hiccup-mode protection. Slim 22.5 mm 12 V DC 1 A supply for small control loads.
- 12W · 12V DC / 1 A
- Efficiency >85% @230 V AC
- Wide 100–270 V AC input
- Hiccup overload & short-circuit protection
- Over-voltage & over-temperature protection
- 2.5 KV input/output isolation
Genuine MultispanCE certified
UAE & GCC delivery
Technical Specification
PS12-1A specifications
Model
| Model | PS12-1A |
|---|---|
| Rated Power | 12W |
| Output | 12V DC / 1 A |
| Size (HxWxD) | 90 x 22.5 x 75 mm |
| Weight | 110 gms |
| Mounting | DIN Rail |
Input
| Supply Voltage | 100 to 270V AC ±10% (L-N) |
|---|---|
| Frequency Range | 50 / 60 Hz |
| Efficiency (typ.) | >85% @230V AC |
| Start-up Time | <1 sec @230V AC |
Output
| Nominal Output | 12V DC, 1 A |
|---|---|
| Ripple & Noise (max) | <1% of V out |
| Line / Load Regulation | ±1% |
| Adjustment | Front voltage ADJ. trimmer |
Protection
| Overload | 110–140% rated — hiccup mode, auto-recover |
|---|---|
| Short Circuit | Hiccup mode, auto-recover |
| Over Voltage | Latch / auto per model |
| Over Temperature | Auto shutdown & recovery |
| Isolation | 2.5 KV input to output |
