MULTISPAN
Ordering codePS15-5A
SMPS Power Supplies
PS15-5A

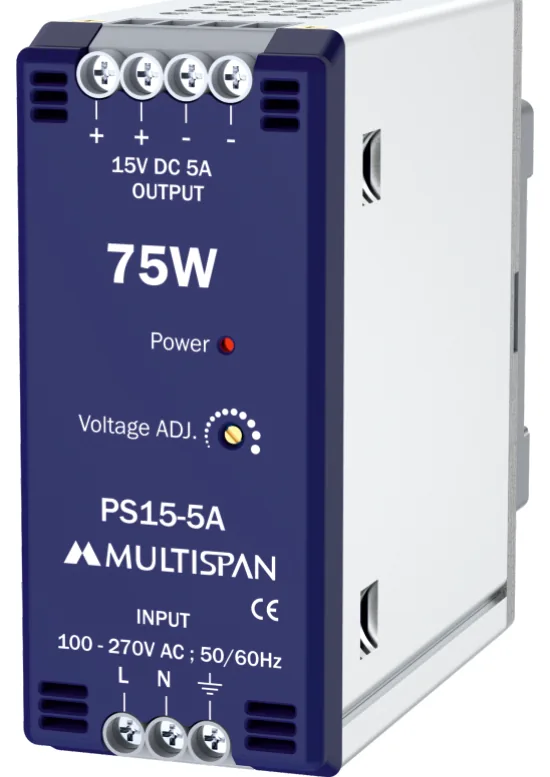

Multispan PS15-5A SMPS Power Supply (75W)
The Multispan PS15-5A is a 75W DIN-rail switch-mode power supply delivering 15V DC at 5 A with efficiency >86% @230 V AC and full hiccup-mode protection. 14–16 V DC output for 15 V loads.
- 75W · 15V DC / 5 A
- Efficiency >86% @230 V AC
- Wide 100–270 V AC input
- Hiccup overload & short-circuit protection
- Over-voltage & over-temperature protection
- 2.5 KV input/output isolation
Genuine MultispanCE certified
UAE & GCC delivery
Technical Specification
PS15-5A specifications
Model
| Model | PS15-5A |
|---|---|
| Rated Power | 75W |
| Output | 15V DC / 5 A |
| Size (HxWxD) | 105 x 45 x 110 mm |
| Weight | 425 gms |
| Mounting | DIN Rail |
Input
| Supply Voltage | 100 to 270V AC ±10% (L-N) |
|---|---|
| Frequency Range | 50 / 60 Hz |
| Efficiency (typ.) | >86% @230V AC |
| Start-up Time | <1 sec @230V AC |
Output
| Nominal Output | 15V DC, 5 A |
|---|---|
| Ripple & Noise (max) | <1% of V out |
| Line / Load Regulation | ±1% |
| Adjustment | Front voltage ADJ. trimmer |
Protection
| Overload | 110–140% rated — hiccup mode, auto-recover |
|---|---|
| Short Circuit | Hiccup mode, auto-recover |
| Over Voltage | Latch / auto per model |
| Over Temperature | Auto shutdown & recovery |
| Isolation | 2.5 KV input to output |
